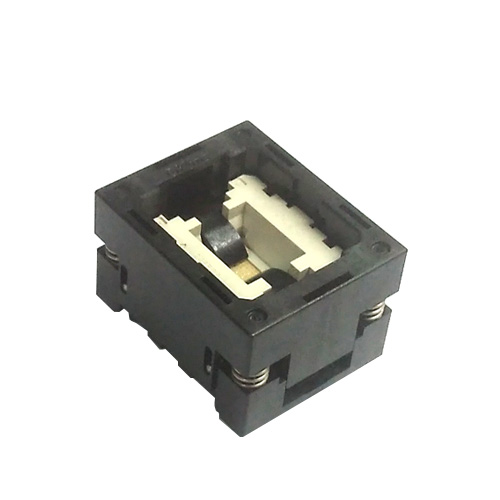

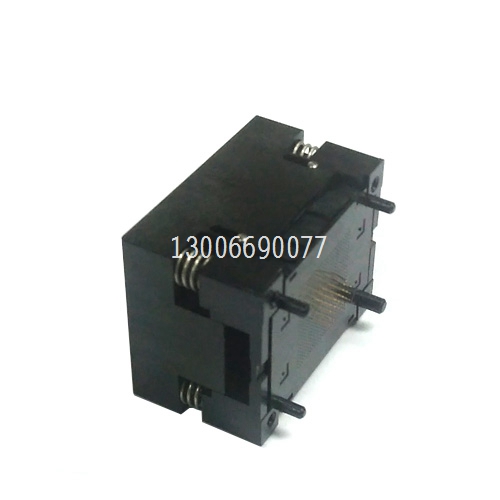

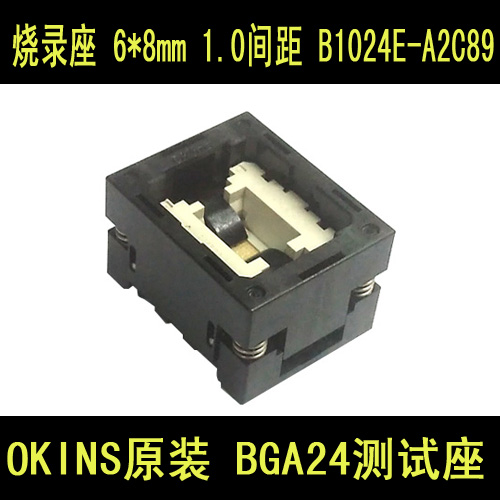

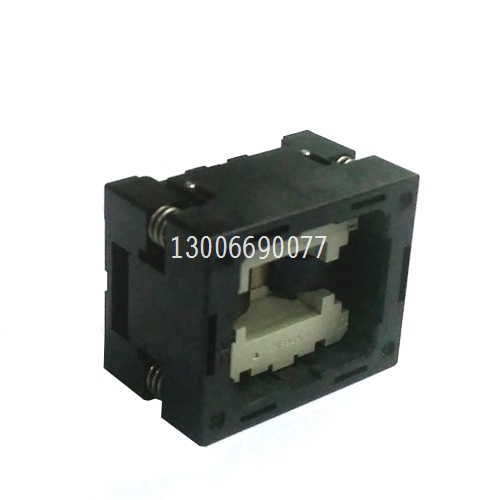

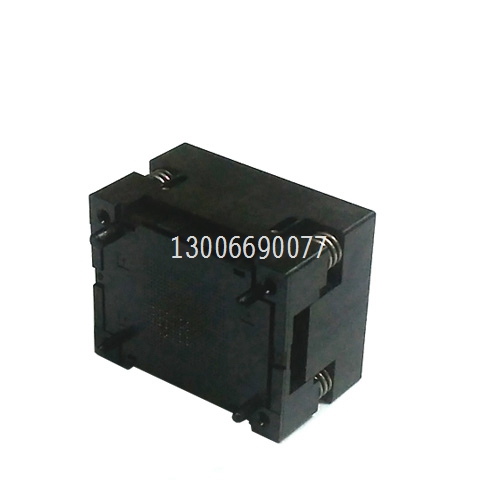

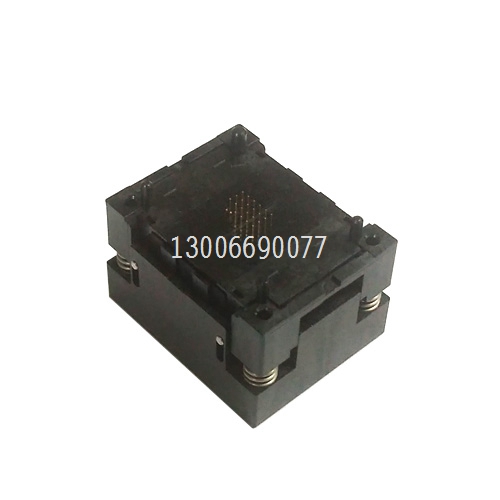

BGA / CSP Pinch Burn-in Socket
+ Two different contact designs :  4-points pinch. tweezers
+ Catalog Download :  CSPburn.pdf


- Full line of Ball Grid Arrat package burn-in sockets
- Full line of Ball Grid Arrat package burn-in sockets
- Contact pitches from 0.5mm to 1.00mm
- Low profile and small footprint for higher board density
- Stable contactability for Lead-free balls

Socket body PEI or equivalent

Contact BeCu, Gold over Nickel Plated

Metal Components Stainless Steel

Contact Force  7,12,14 grams

Operation Force  Max 3.0 kg

Contact Resistance  <50mヘ

Current Carrying Capacity 0.5A

Insulation Resistance >1000mヘ at 100V DC

Temperature Rating -55∩ ~ +150∩

Durability 10,000 cycles

BGA & LGA Burn-in Socket
+ Contact Type :  Buckle Beam U-contact (Bow shape)
+ Socket outlines :  22 x 26, 22 x 28, 25 x 26 mm
+ Applicable Pad Pitch :  0.4/ 0.5/ 0.65/ 0.8/ 1.0 mm
+ Catalog Download :  Burn-in Socket.pdf


- High performance compact burn-in socket with low cost stamped
contact
- Stable contact performance for Pb-free package
- Stable contactability for Lead-free balls
- Stable contactability for Lead-free balls

Socket body PEI or equivalent

Contact BeCu, Gold over Nickel Plated

Metal Components Stainless Steel

Contact Force  11 ~ 14gf

Operation Force  Max 3.0 kg

Contact Resistance  <50mΩ

Current Carrying Capacity 0.6A

Insulation Resistance >1000mΩ at 100V DC

Temperature Rating -55℃ ~ +150℃

Durability 10,000 cycles

QFN Burn-in Socket
+ Contact Type :  Buckle Beam (Bow shape)
+ Socket outlines :  22 x 26 mm
+ Applicable Pad Pitch :  0.4/0.5/0.65/0.8/1.0mm


- Full line-up of low cost QFN burn-in sockets
- Compact outline for high density board design
- Both for manual and automatic handler use

Socket body PEI or equivalent

Contact BeCu, Gold over Nickel Plated

Metal Components Stainless Steel

Contact Force  12~14 gf

Operation Force  MAX 3.0kg

Contact Resistance  <50m?

Current Carrying Capacity 0.6A

Insulation Resistance >1000m? at 100V DC

Temperature Rating -55℃ ~ +150℃

Durability 10,000 cycles

TSOP Burn-in Socket




- Contact pitches from 0.5mm to 1.27mm
- Varous contact forces upon package balls
- Low profile and small footprint for higher board density
- Stable contactability for Lead-free balls

Socket body PEI or equivalent

Contact  BeCu, Gold over Nickel Plated

Metal Components Stainless Steel

Contact Force  7,12,14 grams

Operation Force  Max 3.0 kg

Contact Resistance  <50mΩ

Current Carrying Capacity 0.5A
Insulation Resistance >1000mΩ at 100V DC
Temperature Rating -55 ℃ ~ +150 ℃
Durability 10,000 cycles
BS201-048-446 48 0.50 SB 18.40  20.00  12.00  20.00  28.00  15.40
BS100-054-101 54 0.80 SB 10.16  11.76 22.22 27.41  19.90  15.40
BS100-054-202 54 0.80 SB 10.16  11.84 22.23 28.00  10.20  15.40
BS201-054-290 54 0.50 SB 14.00  14.40  7.62 23.00  18.00  15.40
BS102-066-139 66 0.65 SB 10.16  11.76 22.22 28.00  20.20  14.30
BS102-066-140 66 0.65 SB 10.16  11.76 22.22 27.41  20.90  14.30
BS720-066-279 66 0.65 DB 10.16  11.84 22.22 28.00  20.20  14.80
